Video Guard transforms video monitoring from a passive extra into a proactive defence layer. Traditional alarms can misfire and slow down response times, but Video Guard brings clarity by pairing intrusion events with live visual verification.

Our monitoring specialists see what’s happening the instant an alarm triggers, cutting false alarms and enabling faster, more accurate decisions for businesses and first responders.

As part of IMS’s proactive video monitoring product, Video Guard strengthens the protection we deliver—improving confidence, response effectiveness and real-time intervention. It’s modern security built for modern threats.

Go back

Video Guard Monitoring

How It Works

Traditional alarm systems alert monitoring centres without providing visual context, forcing operators to guess the nature of the event—leading to high rates of costly false alarms.

The Video Guard system solves this by bridging your existing alarm panel and surveillance cameras. This integration provides operators with instant, verified video footage of any trigger event. This certainty allows for immediate, proactive intervention and transforms your security from reactive notification to intelligent, effective defence.

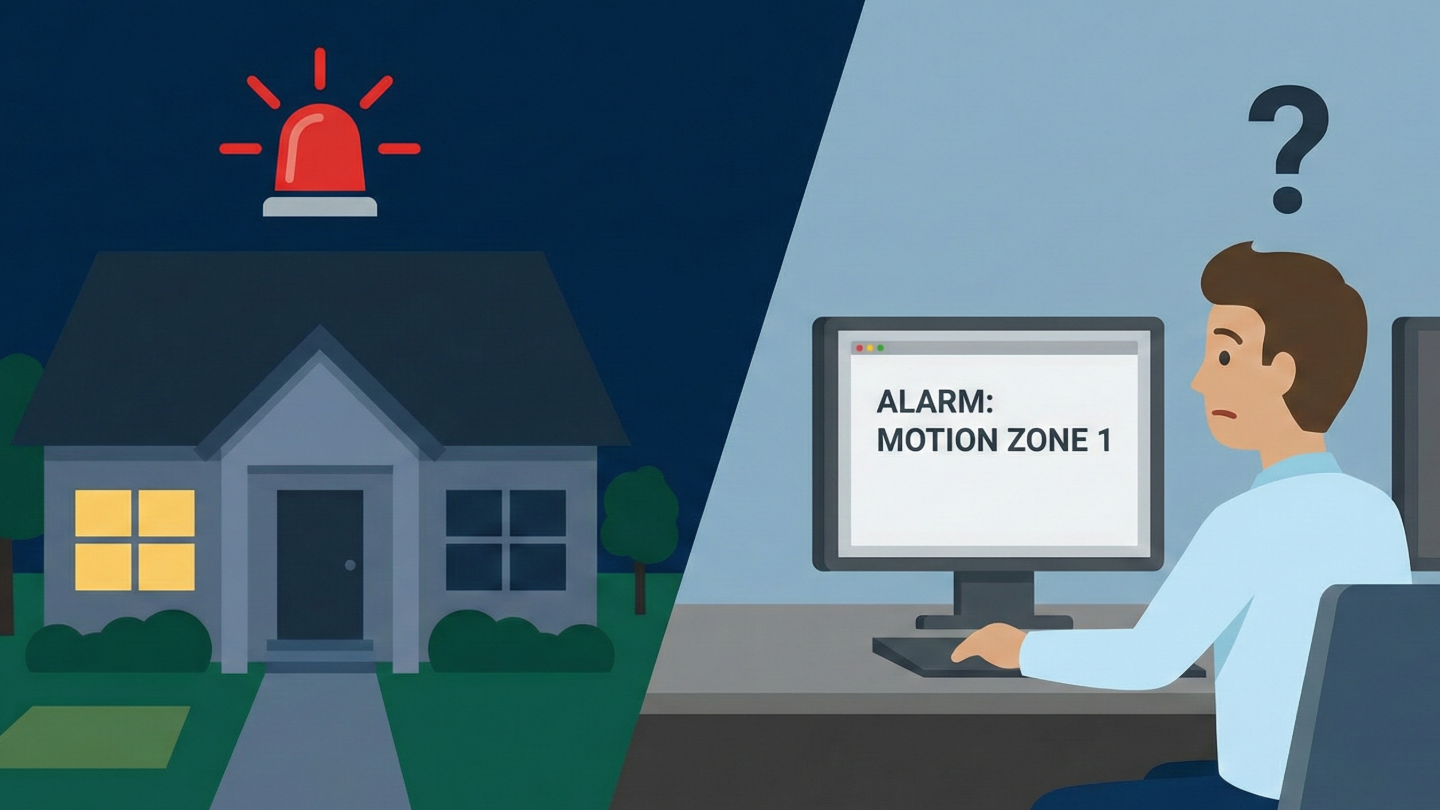

1. The Problem: "Blind" Alarm Monitoring

Traditional alarm systems are excellent at detecting motion or a door opening, but they don't tell the monitoring centre what caused the alarm. This lack of visual context leads to a high rate of false alarms from pets, employees, or even weather, leaving operators uncertain and inefficient.

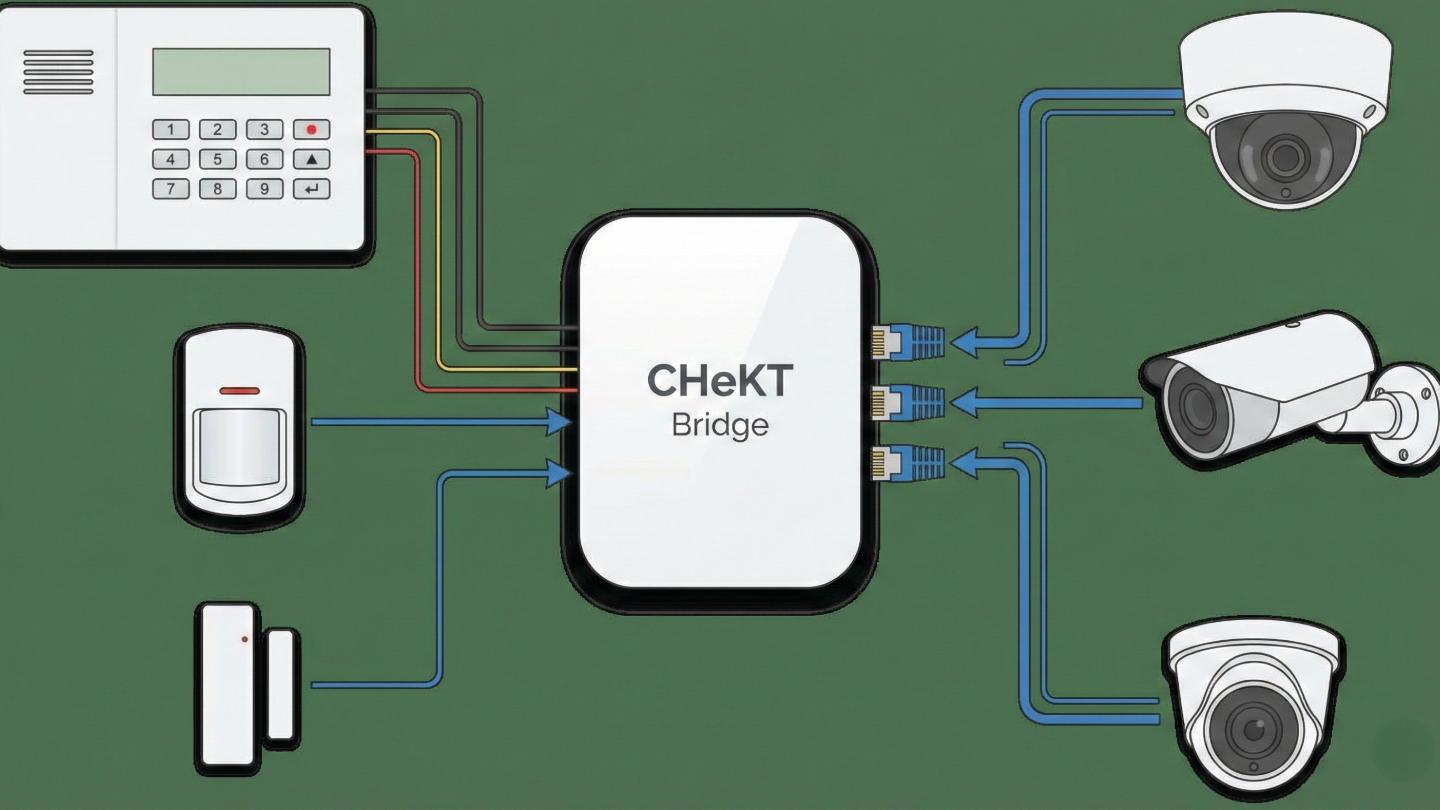

2. The CHeKT Solution: Bridging Alarms and Video

The core of Video Guard's solution is the CHeKT Bridge. This device acts as a universal hub, physically connecting to your existing alarm panel and sensors while also integrating with your IP or analogue cameras via the local network. It creates a unified system where every alarm zone is paired with a camera.

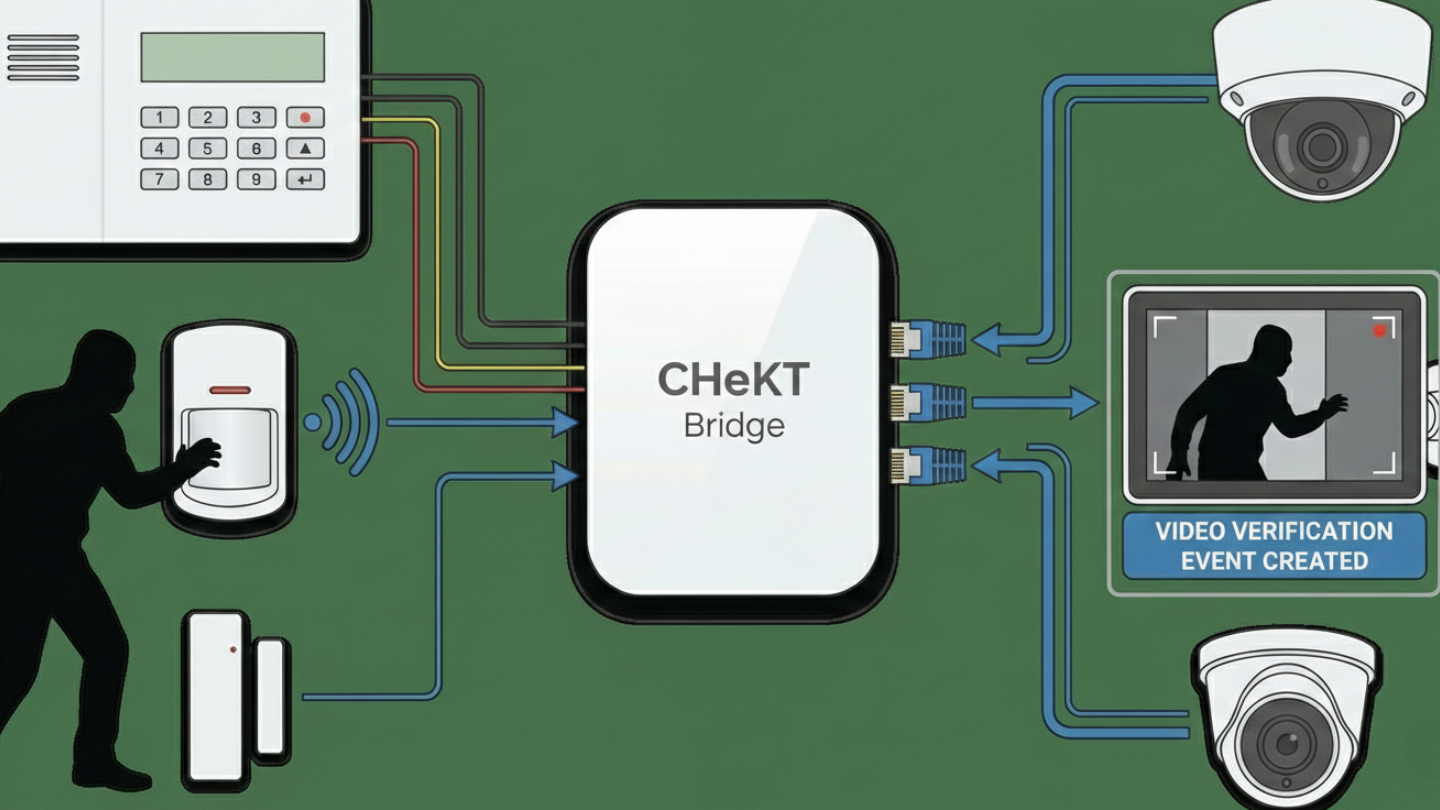

3. The Trigger Event: Instant Video Verification

When an alarm sensor is triggered (e.g., by an intruder), the signal is sent to the CHeKT Bridge. In a fraction of a second, the Bridge automatically pairs this alarm signal with the live video feed from the camera assigned to that zone. This creates a single, comprehensive "video verification event" for the monitoring centre.

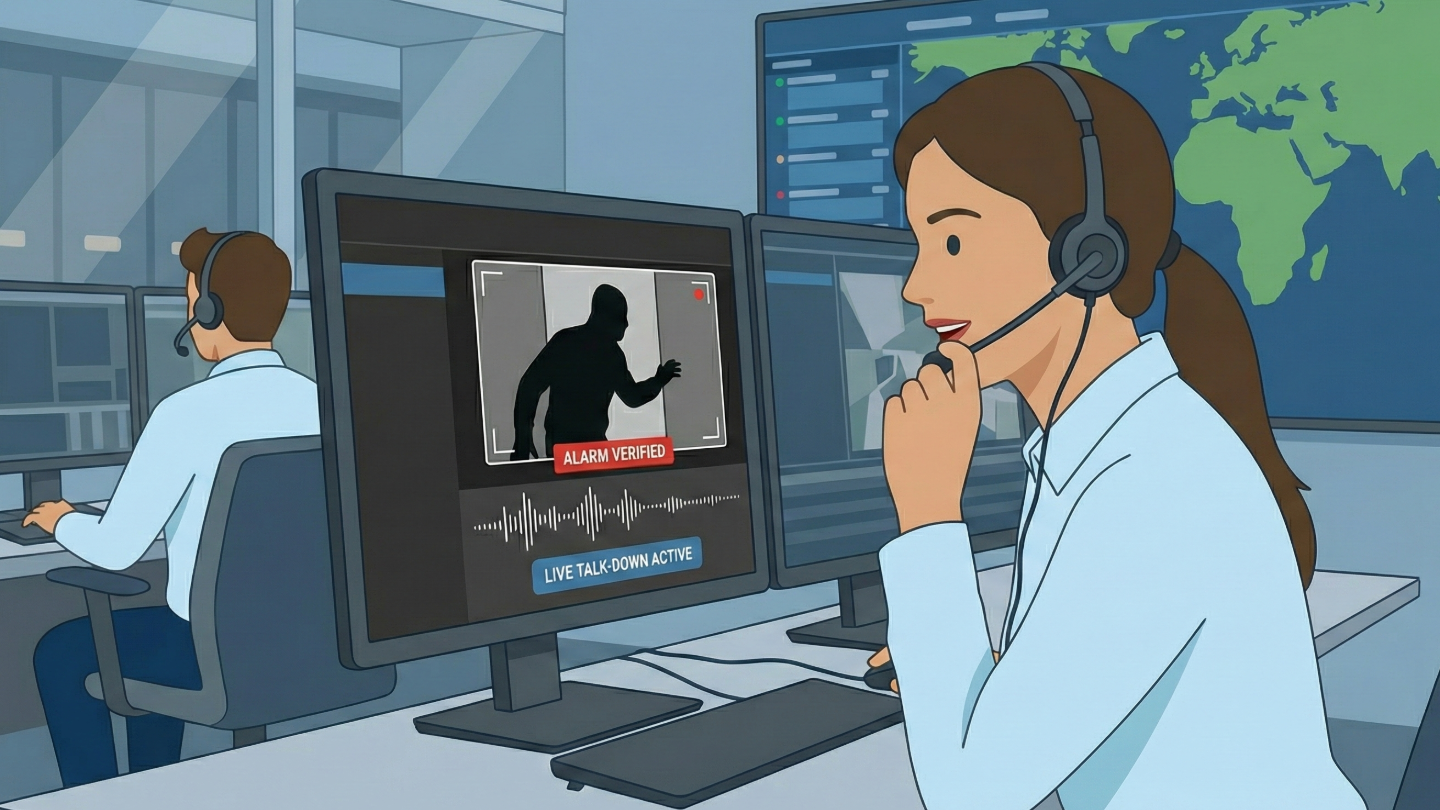

4. The Monitoring Centre: Proactive Response

The monitoring operator receives the alarm not as a blind signal, but as a clear video feed of the event. They can immediately verify if a real threat exists. If an intruder is confirmed, the agent can use CHeKT's features, such as the Live Talk-Down function, to broadcast a live voice warning to the site, often deterring the criminal before any damage is done.

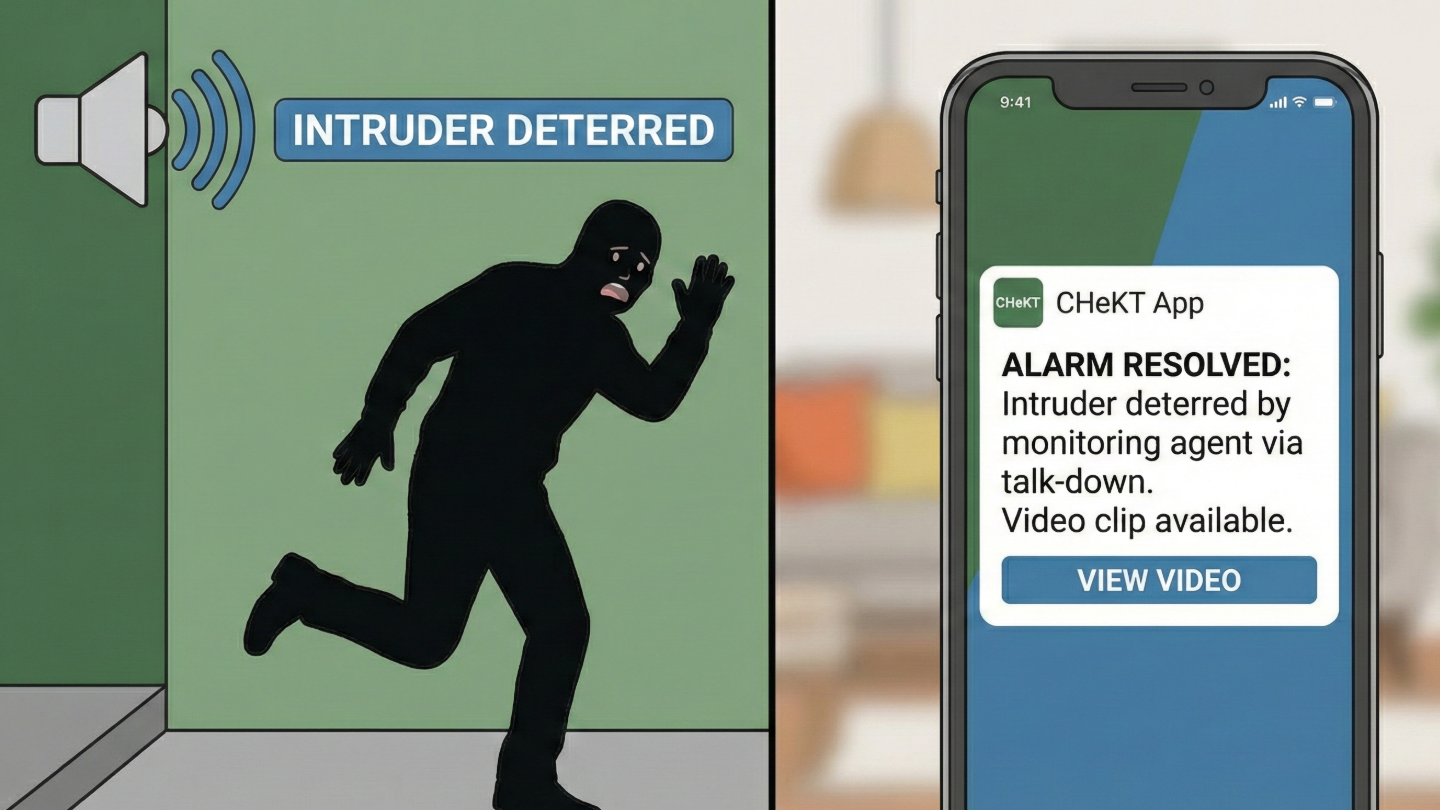

5. The Outcome: Deterrence and Notification

The combination of immediate verification and proactive intervention often leads to the intruder fleeing the scene. The monitoring operator then resolves the alarm and sends a notification to the customer via the CHeKT app or SMS. This message includes a link to the recorded video clip, giving the customer complete peace of mind and a clear understanding of the event.

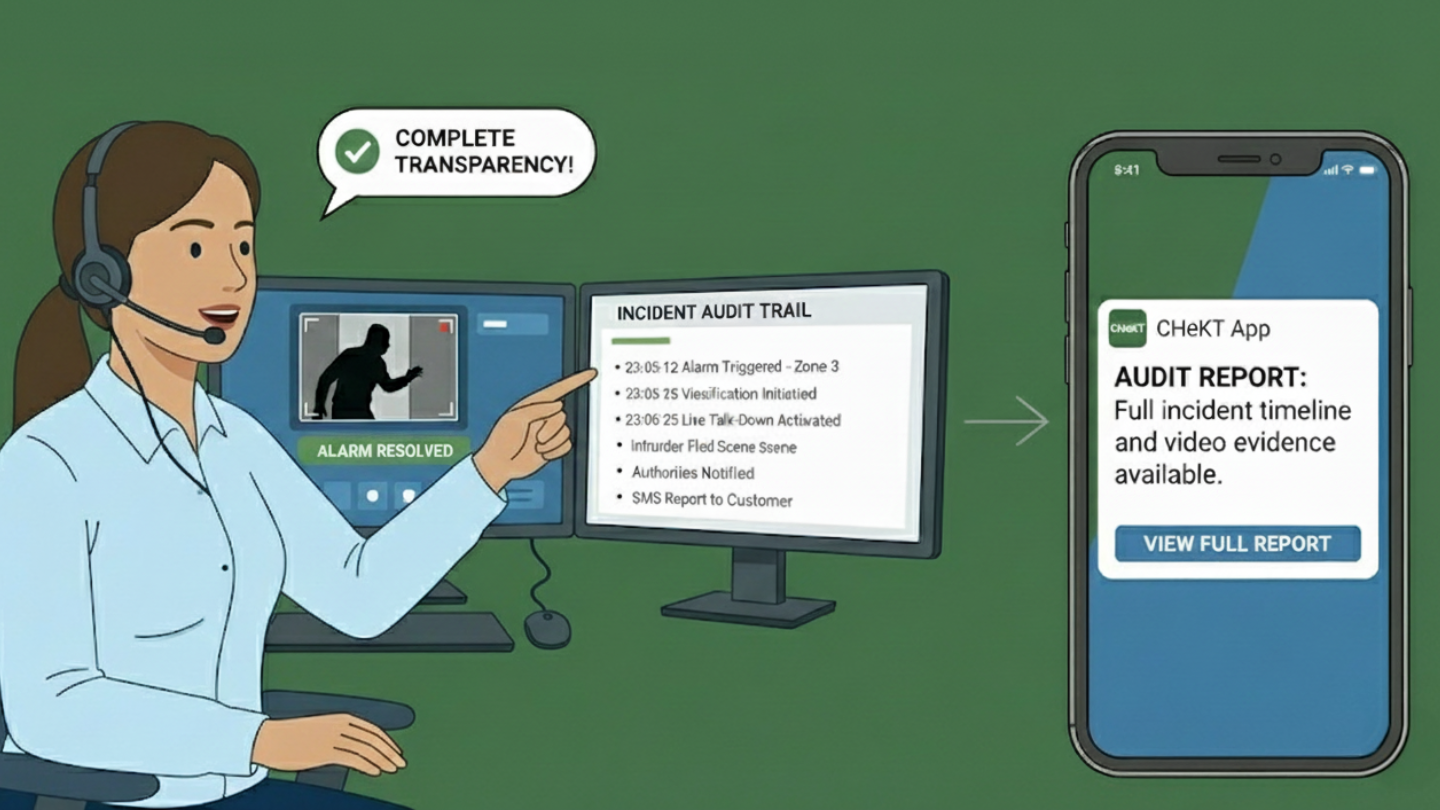

6. Comprehensive Audit and Service Reporting

The Video Guard system automatically logs every action taken by the monitoring operator—including video viewing, talk-down broadcasts, and SMS verification requests—directly into the central station's alarm automation software. This provides a complete, time-stamped audit trail for every incident, reducing liability, justifying the premium visual verification service, and providing irrefutable evidence for law enforcement and customer review.

CHeKT Hardware

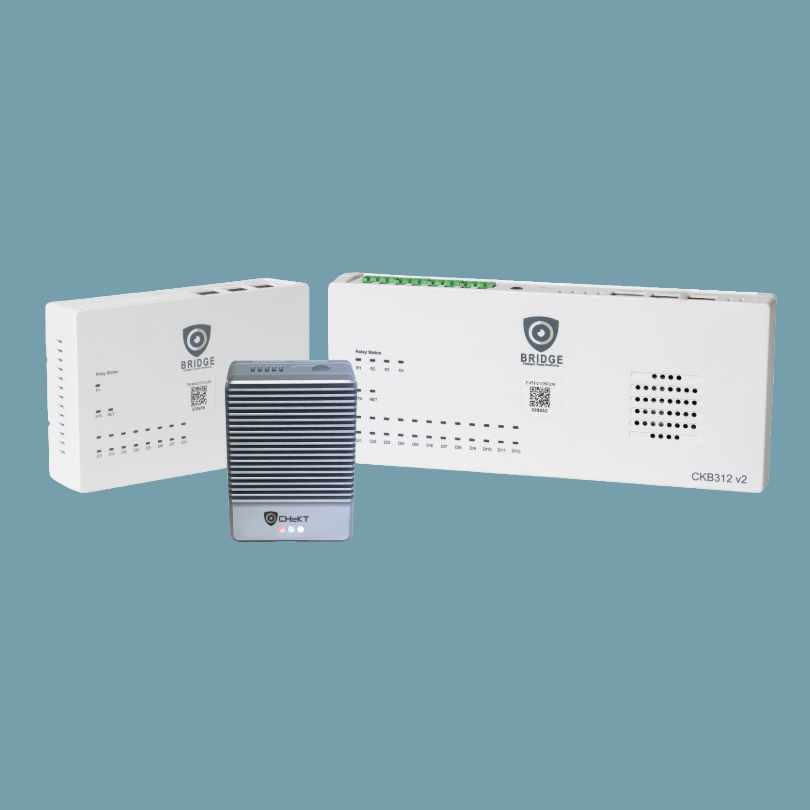

CHeKT’s 8, 12, and 16-channel bridges connect your cameras to professional monitoring, turning standard CCTV into a verified, response-ready system. Pick the size that matches how many cameras you need to bring online — they all deliver fast, reliable event handling with minimal fuss.

CKB308
The CKB308: 8-Channel Visual Security Bridge
CKB312v2
The CKB312: 12-Channel Visual Security Bridge
CKB416
The CKB416: 16-Channel Visual Security Bridge

The CKB308: 8-Channel Visual Security Bridge is a POE-powered video security panel designed for professionals. It transforms connected cameras, traditional alarm sensors, and video analytics into proactive visual security zones, enabling real-time video alarm monitoring.

POE Power or 12V DC Power
8 Normally Open or Closed Alarm Inputs
8 Camera Channels
Turn Camera Analytics into Alarm Reporting Zones
Converts Video Analytics Alarm Signals for Central Station Response
Bind Alarm Inputs and Camera for Video Events
Pair Cameras with Existing Alarm Panel Zones
1- Normally Open and Closed Controllable Relay Outputs
1 – Arming Input for Key Switch Arming from Traditional Alarm Systems
Remote Talk-Down Capability to Support IP Speakers and an Analog Line-level Audio output
Launch cameras with your existing alarm signals in the central station.
Contact ID Alarm Communication into Alarm Receiving Centers
Cloud Storage of all video events (30/90/365 Day Options)
End-User Mobile App for Alerts, Arming, Remote Live Viewing, Audio Talk Down, and Relay Controls

The CKB312: 12-Channel Visual Security Bridge is a POE-powered video security panel that enables security professionals to convert connected cameras, traditional alarm sensors, and video analytics into proactive visual security zones, providing real-time video alarm monitoring.

POE Power or 12V DC Power
12 Normally Open or Closed Alarm Inputs
12 Camera Channels
Turn Camera Analytics into Alarm Reporting Zones
Converts Video Analytics Alarm Signals for Central Station Response
Bind Alarm Inputs and Camera for Video Events
Pair Cameras with Existing Alarm Panel Zones
4 – 5Amp Normally Open and Closed Controllable Relay Outputs
1 – Arming Input for Key Switch Arming from Traditional Alarm Systems
Remote Talk-Down Capability to Support IP Speakers and an Analog Line-level Audio output
Launch cameras with your existing alarm signals in the central station.
Contact ID Alarm Communication into Alarm Receiving Centers
Cloud Storage of all video events (30/90/365 Day Options)
End-User Mobile App for Alerts, Arming, Remote Live Viewing, Audio Talk Down, and Relay Controls

The CKB416: 16-Channel Visual Security Bridge is a POE-powered video security panel for security professionals to turn connected cameras and video analytics into video security zones for proactive visual security and video alarm monitoring.

2 LAN Ethernet Ports
POE Power or 5V DC Power
16 Camera Channels
Turn Camera Analytics into Alarm Reporting Zones
Converts Video Analytics Alarm Signals for Central Station Response
Remote Talk-Down Capability to Support IP Speakers and an Analog Line-level Audio output
Contact ID Alarm Communication into Alarm Receiving Centers
Cloud Storage of all video events (30/90/365 Day Options)
End-User Mobile App for Alerts, Arming, Remote Live Viewing, Audio Talk Down, and Relay Controls

How is Video Guard Different from other Video Solutions?

Video Guard powered by CHeKT easily integrates with existing security systems or can be installed with new setups, offering flexible Video Monitoring solutions. It supports both on-site alarm systems and standalone video systems, ensuring compatibility with most setups.

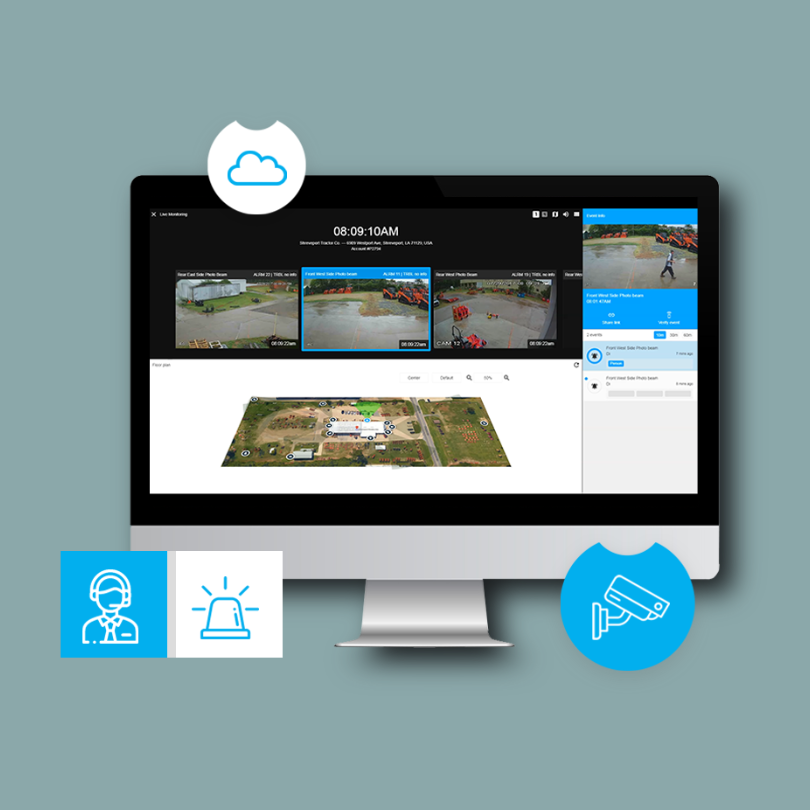

The Visual Alarm Monitoring interface provides operators with a consistent view of all video systems during alarms. Video Guard enables real-time video sharing with customers and law enforcement, enhancing decision-making and response. Operators can also deter crime with audio broadcasts and control lights and sirens.

Video Guard empowers operators with full interactive control, delivering a superior remote monitoring experience and enhanced security for properties.

Fully Compatible

Adding Video Guard solution powered by CHeKT to your monitoring centre software is as simple as adding a new alarm panel to a monitoring centre. However, as a video-centric video control panel, CHeKT delivers video alarms from Video AI classifications and camera analytic detections as alarm signals into existing alarm monitoring centres. By utilising the alarm industry’s standard alarm communication protocols and by transmitting encrypted video data, CHeKT turns your alarm monitoring experience into a proactive video alarm monitoring experience.

CHeKT’s integration with the following alarm automation software allows monitoring centres and their operators to maintain existing alarm response standards and keeps them in a familiar environment. This detailed integration with the supported platforms allows alarm centres to maintain staffing levels, productivity, and efficiency. When processing a CHeKT video alarm signal with these platforms, the alarm centre operators have instant access to live video and video alarm data from the site.
